Video wall advertising P1.875 flexible LED module bending flexible LED display for cylindrical column use
Function and Technology Character Introduction:
1,Can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
2,Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
3,soft led panel,Flexible led display module With MBI5124 Driving IC with High Refresh Rate and Best Color Uniformity
4,soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving.
Products Applications:

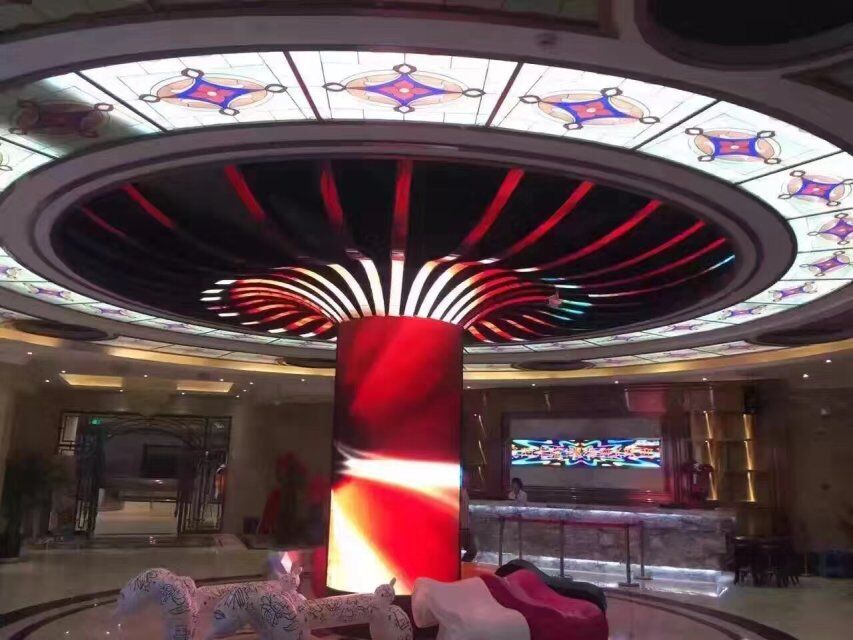

Widely used in churches, control command centers, video surveillance centers, high-definition information release, conference display systems and other commercial venues
SPECIFICATIONS Parameters:
| Pixel pitch (mm) | P1.875 |
| Module size(mm) | 240X120mm |
| Pixel density (point /㎡) | 284444 |
| Module resolution (WxH) | 128X64 |
| Pixel structure | SMD1515 |
| scanning method | 1/32 |
| Refresh rate (Hz) | ≥3840Hz |
| White balance brightness (nits) | ≥800 |
| Color temperature (K) | 1500-12000Adjustable |
| Gray scale | 16bit |
| Frame change frequency | 60-120Hz |
| Viewing angle (horizontal/vertical°) | 160/160 |
| Protection level (front/back) | IP31/IP45 |
| Power consumption (peak/average W/㎡) | 850/300 |
weiye color series led strip display screen advantage:
1,Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
2,Assembling screen with soft led modules directly,saving time and effort,easy operation.
3, Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
4,No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
5,Strict quality control and long-term application experience verified the stability and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.
Product Tags:
|
|
P1.875 Flexible LED Module Bending Screen Display 240*120mm For Cylindrical Column Images
|
